PRECISION VICES
3-WAY TILT & SWIVEL ANGLE VICE
FEATURES
- Body is made of graded cast iron
- High quality steel acme screw
- Hardened and accurately ground jaws
- This vice can set up at any angle with positive locking
- Upper angle base can incline from the horizontal position to the vertical position
- The entire unit may be swivelled on a base plate through 360o
- The lower angle setting base can incline upto 45o in both right and left directions.
SPECIFICATION
Size in Inches
|
4
|
6
|
Width of Jaws in mm
|
100
|
150
|
Opening of Jaws in mm
|
100
|
150
|
Depth of Jaws in mm
|
38
|
48 |
Length overall in mm
|
195
|
285
|
Height over all in mm
|
450
|
530
|
Tenon slot Size in mm
|
16 |
16 |
Weight (Approx.) in kgs. |
22 |
52 |

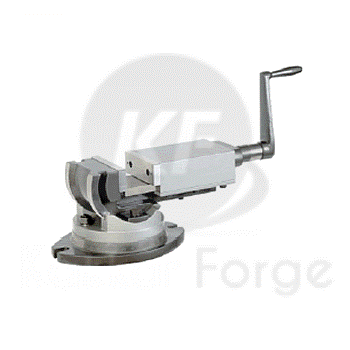

FEATURES
-
Body of vice made of close grained cast iron
- Positive locking to withstand heavy loads
- Horizontal Swivel movement 360o, Vertical swivel movement 90o.
- Fine acme thread screw made out of special steel.
- Quick alignment to machine tables using a longitudinal slot.
- hardened and ground jaws.
- Crank Handle is made of unbreakbale steel provided iwth a spring loaded mechanism.
SPECIFICATION
Sinze in Inches |
3 |
4 |
6 |
8 |
Width of Jaws in mm |
75 |
100 |
150 |
200 |
Opening of Jaws in mm |
75 |
100 |
150 |
200 |
Depth of Jaws in mm |
35 |
38 |
50 |
60 |
Length overall in mm |
270 |
340 |
485 |
635 |
Height over all in mm |
135 |
150 |
195 |
230 |
Tenon slot Size in mm |
13 |
16 |
26 |
20 |
Weight (Approx) in kgs. |
8 |
18 |
42 |
76 |

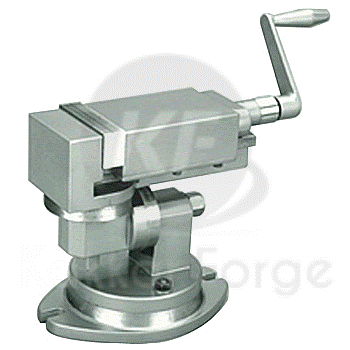

FEATURES
- Accurately designed for use on surface, universal tool and cutter grinding machines
- Accurately groung jaws made out of special steel for firm gip
- All swivelling movements have positive locking and the job can be locked at any compound angle.
-
SPECIFICATION
Size in Inches
|
2
|
3
|
4
|
6 |
Jaws Width
|
50
|
75
|
100
|
150 |
Jaws Depth
|
23
|
35
|
38
|
48 |
Jaws Opening
|
50
|
75
|
100 |
150 |
Swivel Range
|
360o
|
360o |
360o |
360o |
Tilting Range
|
Universal
|
Universal |
Universal |
Universal |
Approx. Height
|
138 |
225 |
235 |
280 |
Weight (in kgs.)
|
4 |
12 |
20 |
35 |

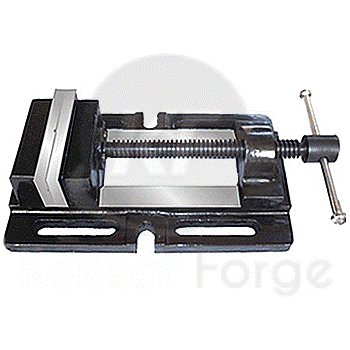

DRILL MACHINE VICE
DRILL PRESS VICE HEAVY DUTY
SPECIFICATION
Size
|
Weight
|
S. Pkg.
|
3"
|
3.0
|
10
|
4"
|
8.0 |
8
|
5"
|
10.0
|
4
|
6"
|
15.0
|
3
|
8"
|
25.0
|
2 |
WOOD WORKING VICE
Wood Working Vise heavy duty
SPECIFICATION
SIZE |
WIDTH OF JAWS
|
OPENING OF JAWS
|
WEIGHT(APROX)
|
6" |
150MM |
175MM |
5KG |
7" |
175MM |
200MM |
9KG |
8" |
200MM |
225MM |
11KG |
9" |
225MM |
250MM |
15KG |
