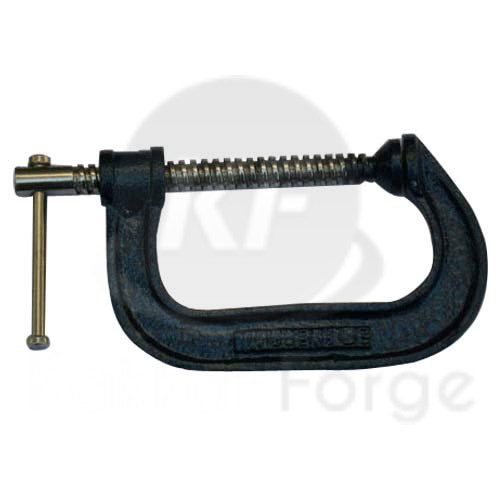

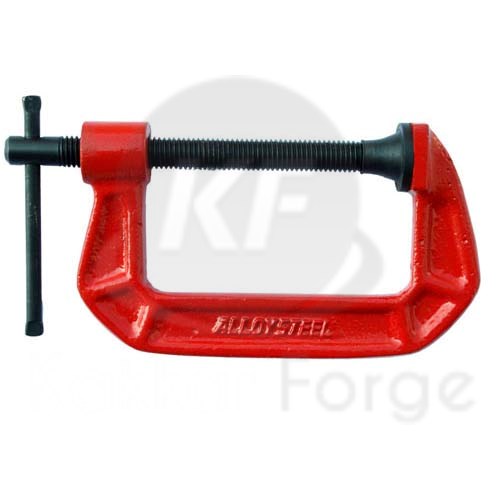

C/G CLAMPS

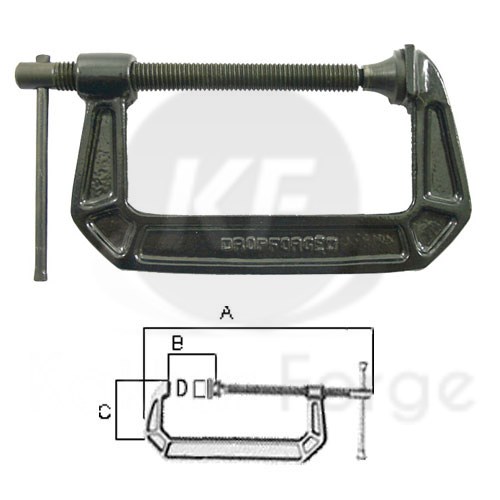

Body Hot drop Forged from High Grade Steel with Auto Black/Powder Coating finish for long trouble free service. Ideal for heavy duty application.
SIZES |
SIZES |
A |
B |
C |
D |
APPROX |
2 | 50 | 180 | 50 | 47 | 20 | 265 |
3 | 75 | 250 | 76 | 63 | 25 | 485 |
4 | 100 | 305 | 101 | 73 | 25 | 785 |
6 | 150 | 415 | 152 | 87 | 28 | 1170 |
8 | 200 | 540 | 203 | 107 | 30 | 2000 |
10 | 250 | 635 | 266 | 115 | 32 | 3800 |
12 | 300 | 805 | 325 | 124 | 34 | 5000 |
